Open SSH Access on BMW NBT & NBT EVO: What It Is and How to Get It

If you've been reading BMW coding forums or looking at community projects on GitHub, you've probably come across the term SSH access (also called root access) for the NBT and NBT EVO head units. It keeps coming up because it's the key that unlocks the more advanced things people want to do with iDrive. This article explains what it is, what it's used for, and the options for getting it, including the service we offer here at Navi4Bimmer.

What is SSH access on a BMW head unit?

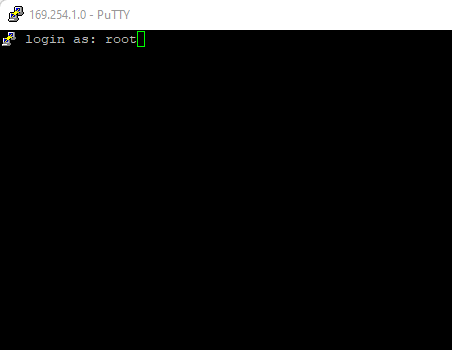

The NBT and NBT EVO head units are small QNX computers. SSH (Secure Shell) is the standard way to log in to a QNX system's command line over a network connection. On a BMW, "opening SSH" means enabling that login so a technician can reach the head unit's internal filesystem and software, rather than being limited to what iDrive shows on screen.

By default, this access is locked. Enabling it is what the community calls Open SSH, and it's the first step behind many advanced NBT EVO projects.

What is SSH access used for?

Once SSH is open, a specialist can carry out tasks that aren't possible through the normal iDrive menus, including:

• Learning (adapting) a new HDD or SSD to the head unit after a storage replacement or upgrade.
• Changing the iDrive vehicle template, for example when moving a used unit between different cars.
• Applying manual patches to the unit's software.
• Running community and experimental projects. The well-known iDrive 6 Android Auto project on GitHub, for instance, needs SSH access to the head unit before any of it can be installed.

How is SSH opened?

There are a couple of approaches discussed in the BMW retrofit community. One works over a USB connection; another, used as a fallback, goes through the unit's internal serial (UART) interface with the head unit partly disassembled. You can find community discussion of these methods on enthusiast forums such as the Open SSH for BMW NBT / NBT EVO thread on car1337.com.

It's worth being honest about what's involved. The manual methods require specific tooling and correct firmware match. The forum threads are full of people reporting units that reboot-loop, refuse to boot after a step went wrong. On a head unit worth several hundred euros, a mistake is expensive.

The easy way: our Open SSH Feature Installer code

Rather than disassembling your unit and risking a brick, we offer an Open SSH Feature Installer code that is generated for your specific car. You select your head unit type (NBT, NBT EVO ID4, or NBT EVO ID5/ID6), enter your VIN, and receive the code by email, typically within a few hours.

It's the same end result, SSH access on your NBT or NBT EVO, without opening the unit up or soldering to a serial header.

Important safety notes

• SSH access and the projects built on it are advanced, enthusiast-level modifications. They are not endorsed by BMW and can affect your warranty.
• Community projects such as iDrive 6 Android Auto are experimental. The maintainers themselves describe them as testing-only and warn they should not be used while driving.
• Any low-level change to a head unit carries a risk of making it unusable. Always back up first and proceed carefully.

Not sure whether your car's head unit is supported, or which option is right for you? Get in touch or message us on WhatsApp or Telegram before ordering, and we'll check your VIN for you.
